PANELS

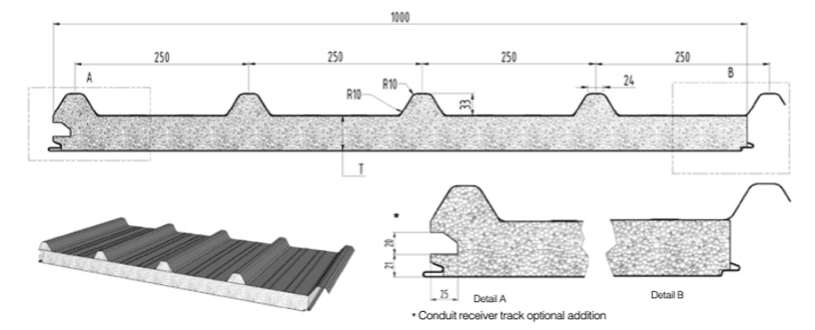

Trim insulated roofing panel
A light weight panel system that includes roll-formed steel top and bottom skins, with a fire retardant expanded polystyrene core.
Easy Panel stock 50mm (4m & 6m) & 75mm (4m, 6m & 8m) in Surfmist both sides, for your convenience!
If you’d like any other length, thickness or colour we can have this made to order in approximately a week’s time!

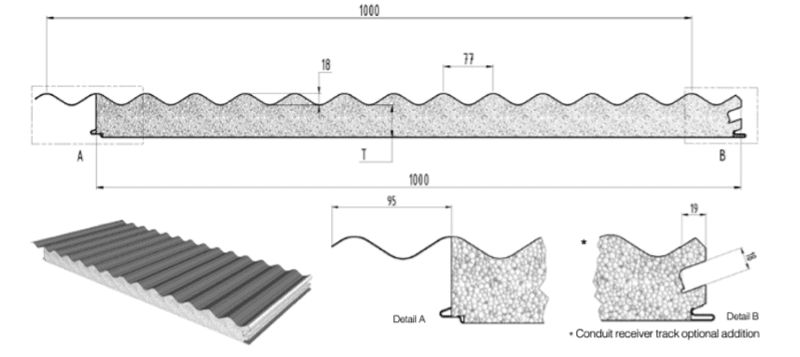

Orb insulated roofing panel
A light weight panel system that includes roll-formed steel top and bottom skins, with a fire retardant expanded polystyrene core.
Easy Panel stock 50mm (4m & 6m) & 75mm (4m, 6m & 8m) in Surfmist both sides, for your convenience!
If you’d like any other length, thickness or colour we can have this made to order in approximately a week’s time!
FLASHINGS

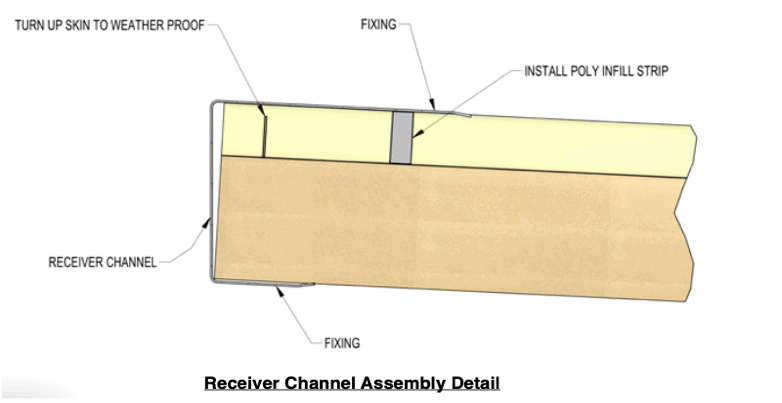

Receiver Channel 1.2BMT
Provides a water tight connection between an existing structure and the Roof Panels. Suitable for a fascia or wall mount. Available in 1.2BMT Surfmist Steel.

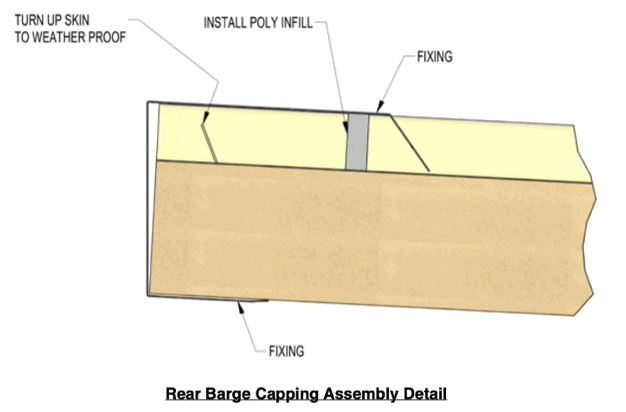

Rear Barge 0.55BMT
Provides a water tight connection between roof panels and flashing. Suited for free standing or flyover structures. 0.55BMT Bluescope Steel.
Side Barge 0.55BMT
Provides a water tight seal with a clean finish to the sides of roof panels. Available in 0.55BMT Bluescope Steel.

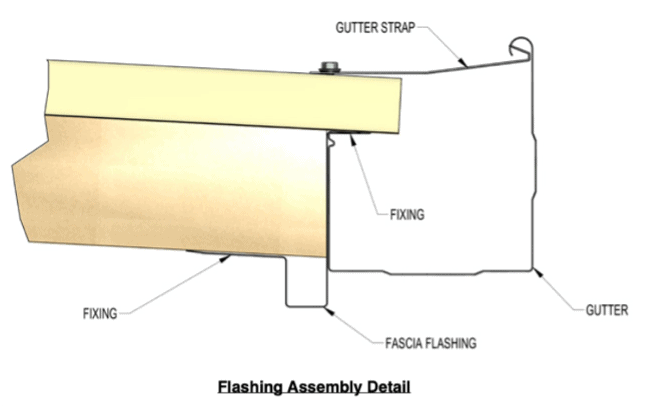

Fascia Flashing 0.55BMT
Provides a drip edge on the lower end of the insulated roof panels. Allows water to flow into the gutter. 0.55BMT Bluescope Steel.
Gutter Kit 0.55BMT
Attached to the Fascia Flashing or Top of Roof. Allows what to run off roof into downpipe. Available in Quad & Square Style Profiles and is made from 0.55BMT Bluescope Steel.
Includes; x2 Stop Ends, x1 Gutter Bracket per LM and x1 Uni Dropper
DeltaBeam 1.2MM-1.6MM
100 x 65 x 1.2mm – 4.1kg/m – Can span up to 4.2m between posts*
150 x 65 x 1.2mm – 5.7kg/m – Can span up to 6.6m between posts*
200 x 65 x 1.2mm – 7.8kg/m – Can span up to 8.4m between posts*
250 x 65 x 1.6mm – 10.4kg/m – Can span up to 9m between posts*
300 x 65 x 1.6mm – 11.7kg/m – Can span up to 9m between posts*
Available in 1.2MM-1.6MM Bluescope Steel: Surfmist, Classic Cream, Paperbark and Night Sky.
Includes; 2 x end caps per beam
Post SHS 2.0MM-2.5MM
65×65 x 2.0MM & 100×100 x 2.5MM SHS Powder Coated Posts – cut to length.
Available in all Colorbond Colours.
Roof Screws
Goes through roof panel and down into the beam – screws to suit Steel or Timber and come with neo washer & cyclone plate providing a water tight seal.
Pop Rivets & Tek Screws
Used to attach flashings and guttering to roof panels.
Pop Rivets, 10×16 Tek & 12×20 Tek Screws available in Colorbond Colours.
