Specification & Span Table

Specification

EPS Sandwich Panel

  • 0.42mm steel top – available in Trim or Orb
  • 0.6mm steel flat bottom
  • Available in multiple colours
  • 50mm – 200mm high density thickness available
  • Cut to length (minimum length available 1800mm)

Single Span Table

MM KG/M2 R Value @ 22.5C Panel Coverage
50 10.58 1.4 1000mm
75 10.94 2.1
100 11.17 2.7
125 11.80 3.4
150 12.23 4.1
175 12.77 4.8
200 13.31 5.4
Wind Category Panel Thickness 3 Sides Open 2 Sides Open 1 Side Open Fully Enclosed
N2 (W33) 50 5400 5000 4500 4300
75 6500 5500 5000 4700
100 7200 6200 5700 5500
N3 (W41) 50 4800 3800 3300 3000
75 5500 4300 3900 3700
100 6200 5000 4500 4300
N4 (W50) 50 4000 3300 3000 3000
75 4600 3600 3400 3300
100 5300 4100 3800 3500

Flashing Specification and Attachment

Easy Panel uses the below flashing attachments which are designed to provide a water tight connection around the panels.

Just like our panels, the flashings are very easy to maintain. Use a low pressure power washer, and if necessary, you can also use car wash soap or a 5% mild detergent to remove the tougher dirt and grime.

**All ‘D Measurements’ are dependent on the thickness of panel being used

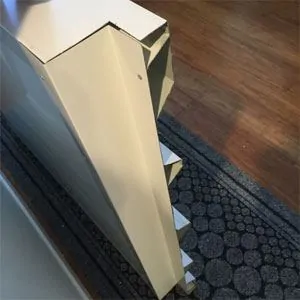

spec2

spec1

Receiver Channel

Rollformed from 1.2BMT Surfmist Steel. Provides a water tight connection between an existing structure and the roof panels. Suitable for a fascia or wall mount.

Rear/Top Barge

Rollformed from 0.55BMT Colorbond Steel. Provides a water tight connection between the roof panels and flashing. Suitable for free standing or flyover structures.

Side Barge

Rollformed from 0.55BMT Colorbond Steel. Provides a water tight connection between the roof panels and flashing whilst creating a smooth, clean finish.

Fascia Flashing

Rollformed from 0.55BMT Colorbond Steel. Provides a water tight connection between the panels and guttering. Allowing water to flow off the panels and into the gutter.
